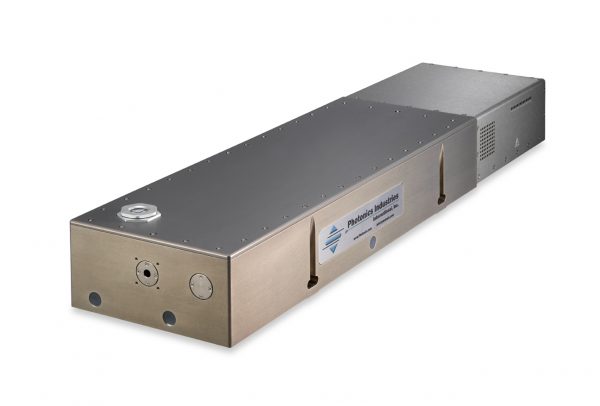

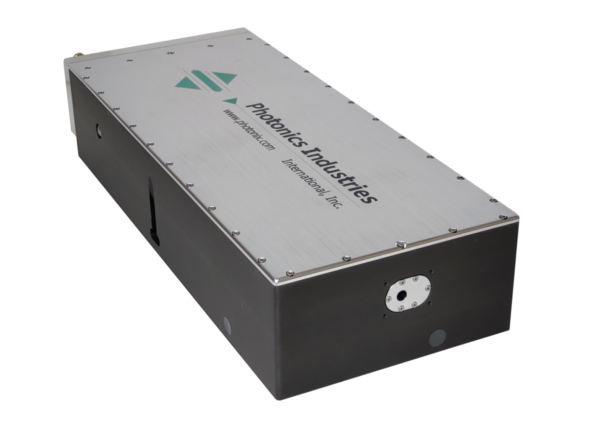

High Repetition Rate OPO Diode Pumped Laser

Features

• Diode pumped technology
• Patented OPO generation technology
• TEM00 beam
• Pulse rate from single shot to 50kHz
• mJ pulse energy at kHz repetition rates
• RS232 computer control

Specifications

DP-OPO System Specifications
Model DP10-OPO
Wavelength 1.5 to 2µm 2.2 to 3.4µm
Pulse Energy* @ 100Hz 4mJ 1mJ
Pulse Width @ 100Hz (nominal) 6 to 10 ns
Beam Mode TEM00 for 1.5-2µm
Beam Diameter @ exit (nominal) 0.7 to 1mm
Pulse to Pulse Stability ±3% rms
Repetition Rate 100 Hz
Model DP10H-OPO DP20H-OPO
Wavelength 1.5 to 2µm 2.2 to 3.4µm 1.5 to 2µm 2.2 to 3.4µm
Pulse Energy* @ 1kHz 2mJ 0.5mJ 4mJ 1mJ
Pulse Width @ 1kHz (nominal) 6 to 10 ns
Beam Modec TEM00 for 1.5-2µm
Beam Diameter @ exit (nominal) 0.7 to 1mm
Pulse to Pulse Stability ±3% rms
Repetition Rate 1kHz

*Pulse energy specified at peak wavelength. For higher pulse energy please contact the factory.

Laser Head Dimensions 7.5 in x 4.1† in x 24 in
Controller Dimensions 19 in x 3.5 (2U)in x 10.25 in
Electrical Requirement 110 VAC 20 Amps or 220 VAC 10 Amps @ 50/60 Hz
Ambient Temperature 15 to 30°C (59 to 86°F) Operating Range
Umbilical Length 3 meter (10 feet)

†4.1″ includes height of dessicant

DS-OPO System Specifications
Model DS10-OPO DP20-OPO
Wavelength 1.5 to 2um 2.2 to 3.4um 1.5 to 2um 2.2 to 3.4um
Average Power* @ 1kHz 1W 300mW 4W 1W
Pulse Width @ 1kHz (nominal) 10 to 15 ns
Beam Mode TEM00
Beam Diameter @ exit (nominal) 0.7 to 1mm
Pulse to Pulse Stability ±3% rms
Repetition Rate range depending on gain medium (1-5kHz, 4-10kHz, 10-20kHz)

*Power specified at peak wavelength. For higher power please contact the factory.

Laser Head Dimensions 7.5 in x 4.1† in x 24 in
Laser Controller 19 in x 3.5 (2U)in x 10.25 in
Electrical Requirement 110 VAC 20 Amps or 220 VAC 10 Amps @ 50/60 Hz
Ambient Temperature 15 to 30°C (59 to 86°F) Operating Range
Umbilical Length 3 meter (10 feet)
DC-OPO System Specifications
Model DC150-OPO
Wavelength 1.5 to 2um 2.2 to 3.4um
Average Power* @ 1kHz 300mW 75mW
Pulse Width @ 1kHz (nominal) 10 to 15 ns
Beam Mode TEM00
Beam Diameter @ exit (nominal) 0.7 to 1mm
Pulse to Pulse Stability ±3% rms
Repetition Rate† 1-5kHz, 4-10kHz, 10-20kHz

*Power specified at peak wavelength. For higher power please contact the factory.
†Repetition rate range depending on gain medium

Laser Head Dimensions 4 in x 4.75 in x 7.8 in
Laser Controller Dimensions 11.5 in x 3.5 (2U)in x 9.5 in
Electrical Requirement 110 VAC 20 Amps or 220 VAC 10 Amps
Line Frequency 50/60 Hz
Ambient Temperature 15 to 30°C (59 to 86°F) Operating Range
Umbilical Length 3 meter (10 feet)

Performance

Application

  • Chemical detection
  • Eye-safe illumination
  • NIR spectroscopy
  • MID-IR spectroscopy
  • LIDAR
  • IR-MALDI
  • Rangefinder, designator
  • Material processing research
  • Biophotonic research – Photoacoustics

Drawings

Options

These lasers are produced with either a fixed wavelength, or narrowly tunable wavelength around that fixed wavelength in the region of 1.5 μm to 3.4 μm. Lower power air-cooled versions are also available.

Harmonic versions available to provide any fixed wavelength selectable between 1nm and 750nm or 666nm to 255nm

Specifications

Performance

Application

Drawings

Options

Please contact us for more options
