DP MAX Series

The DP MAX Series is a compact, diode-pumped solid-state (DPSS) nanosecond laser platform engineered for OEM systems that require high pulse energy, long-term reliability, and a small integration footprint.

At the core of the platform are two high-energy configurations designed to cover a wide range of industrial and scientific use cases:

• DPM-200-100 delivers up to 200 mJ at 100 Hz, with repetition-rate options up to 400 Hz at 1064 nm

• DPM-3000-10 delivers up to 3 J at 10 Hz, or 1 J at 30 Hz at 1064 nm

Together, these configurations address applications that demand stable, repeatable nanosecond pulses without the size, thermal load, or maintenance burden of traditional lamp-pumped lasers.

Designed Around DPSS Reliability

DP MAX is fully diode pulse-pumped, eliminating pulse lamps and the performance drift, downtime, and service intervals associated with legacy architectures.

• Diode lifetimes exceeding 10 billion pulses

• Stable pulse energy and beam characteristics over long operating periods

• Lower maintenance requirements and predictable system behavior

• Reduced long-term cost of ownership for OEM tools

This DPSS architecture enables consistent output that holds alignment and performance in production and research environments.

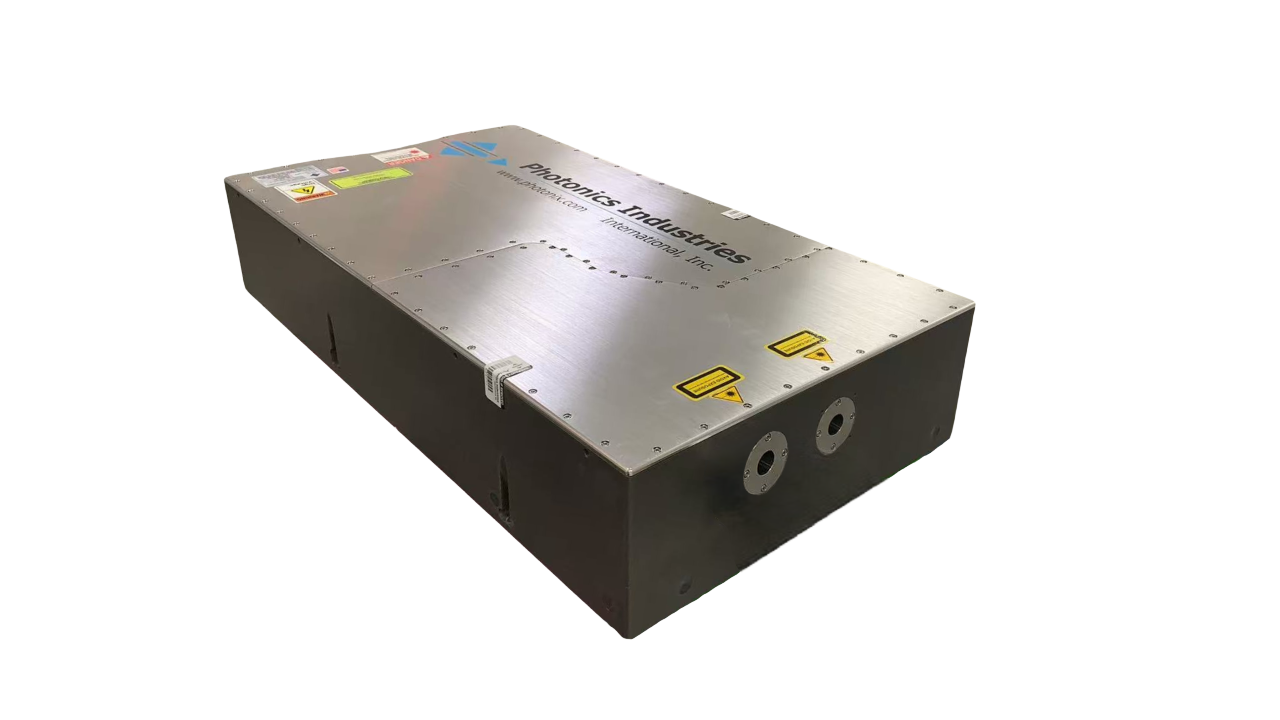

Compact, Monolithic Laser Head

Unlike scaled-down lamp-pumped designs, DP MAX was developed as a compact, monolithic platform from the start.

• Fully sealed industrial laser head

• Short optical path for mechanical and thermal stability

• Smaller footprint and lower mass than comparable high-energy systems

• Detachable umbilical for simplified OEM integration

The result is high pulse energy in a form factor that integrates cleanly into space-constrained tools.

Efficient Operation, Lower Thermal Load

With wall-plug efficiency up to 10%, DP MAX generates significantly less waste heat than lamp-pumped alternatives.

• Lower cooling requirements

• Improved thermal stability

• Reduced stress on optical components

• More predictable performance over long run times

This efficiency directly supports better pulse-to-pulse stability and pointing performance.

Output Stability & Control

• Pulse-to-pulse energy stability down to <0.2% RMS

• Long-term power stability <2% RMS

• Circular multimode beam profile

• Motorized output attenuation (standard)

• Real-time pulse energy control for dynamic processes

Wavelength Options & Integration

• 1064 nm fundamental output

• Integrated harmonics: 532 nm, 355 nm, 266 nm, 213 nm

• Automated harmonic tuning

• Ethernet, RS-232, TTL triggering, and PC-based GUI

• Fast warm-up from standby or cold start

Built for OEM Systems

The DP MAX Series provides high-energy nanosecond performance in a compact DPSS platform designed for integration, uptime, and long-term stability. Multiple configurations are available to match pulse energy, repetition rate, and wavelength requirements.

Additional technical and mechanical details are available for system-level evaluation.

DP Max Pulse Pumped Nanosecond Laser Brochure
