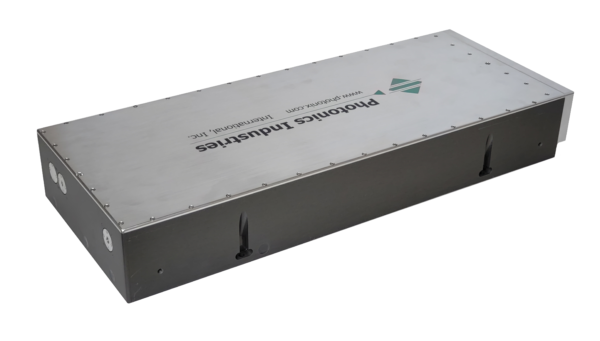

RX3 Series High Power Picosecond Lasers

High Power Picosecond Laser

RX3-1064-130 | RX3-1064-160

RX3-532-85 | RX3-532-100

RX3-355-55 | RX3-355-70

Download Brochure Here

Features

  • Short pulse laser: ~10 ps for IR, ~7 ps for Green & UV; Option up to ~50 ps available
  • Wide range of wavelengths: 1064 nm, 532 nm, 355 nm; MWB, MWS, & 266 nm options on request
  • Smallest, all-in-one (AIO), high power picosecond laser on the market
  • High efficiency picosecond laser with low power consumption: ~1000 W typical
  • High repetition rates: Up to 8 MHz
  • Excellent TEM00 beam, and Pointing Stability: Typical M2 < 1.2; < 20 μrad
  • Exceptional and Versatile Pulse Control: PEC (Power or Pulse Energy Control), PSO (Position Synchronized Output) support for external triggering to any arbitrary PRF while maintaining a constant, stable pulse energy with low jitter, Burst Mode for individually controllable bursts of up to 10 pulses with a separation of 14 ns, POD (Pulse-On-Demand) pulse bursts can be triggered internally, externally, or continuously, while maintaining constant pulse energy

Overview

Photonics Industries’ RX3 Series high power picosecond lasers offer ideal performance, and the smallest overall form factor in the market of industrial picosecond lasers. Photonics Industries is proven, with over a thousand picosecond lasers shipped worldwide, to meet and fulfill precision needs in manufacturing, scientific research, and new, emerging requirements necessitating ever smaller pulse widths in the ultrafast regime.
